Our special limit switch boxes divide themselves as follows:



1.   limit switch boxes mounting positioners

2.   limit switch boxes 2 - 6 sensors/switches

3.   limit switch boxes big sensors/switches







1.   limit switch boxes mounting positioners

1.1   Ex i ... 8 V DC limit switch box for mounting positioner

limit switch box for mounting Samson positioners

Limit switch box with 2x Pepperl+Fuchs sensor SJ 3,5-S1N for position "open" and " closed" for mounting Samson positioner.













1.2   Ex i ... 8 V DC limit switch box for mounting positioner

Limit switch box with 3x Pepperl+Fuchs sensor SJ 3,5-SN for position "OPEN"  for mounting Samson positioner.













1.3   Limit switch box for mounting positioner



Limit switch box for mounting Eckardt-Foxboro positioner with 2x Ex d ... 4 - 250 V AC/DC Bartec limit switches, type: 07/1511-7330/01 for any positions. Temperatur range: - 40°C up to + 70°C













1.4   Ex i ... 8 V DC limit switch box for mounting positioner





Limit switch box with 2x Pepperl+Fuchs sensor SJ 3,5-SN for position "open" and " closed" for mounting Bar positioner.













1.5   4 - 250 V AC/DC mechanical limit switch box for mounting positioner

limit switch box for mounting positioner

Limit switch box for mounting positioners, for example equipped with 2x Bartec limit switches Ex d ... for position "open" and "closed".













2.   limit switch boxes 2 - 6 sensors/switches

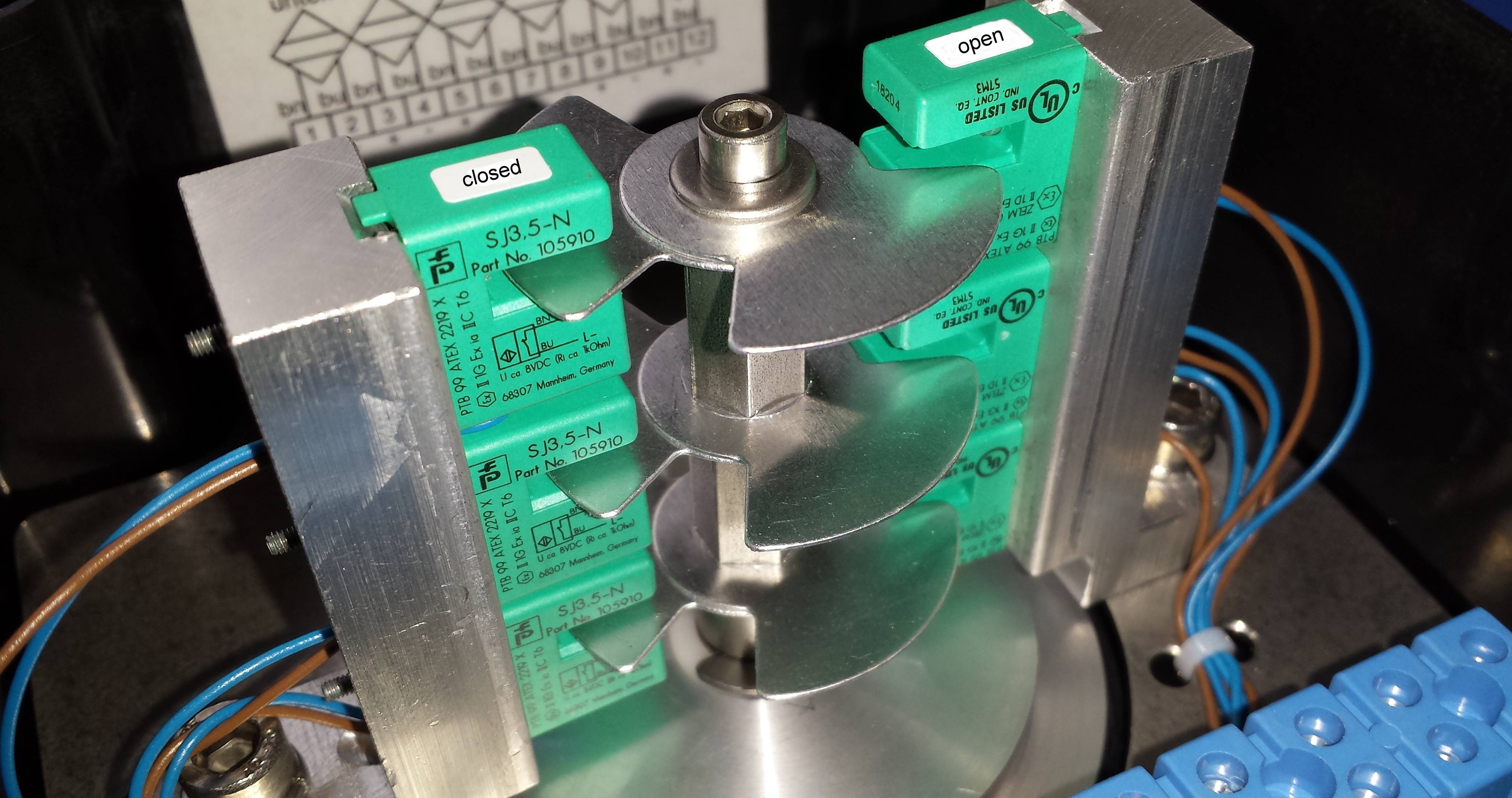

2.1   Ex i ... 8 V DC limit switch box with 6 sensors

















In certain situations it is necessarily this the query of armature positions 2-or 3-fold is secured or, however, an inter-position is necessary. Equipped with 6x Ex i ... 8 V DC Pepperl+Fuchs SJ 3,5-N.













2.2   24 V DC limit switch box with 3 sensors

In certain situations it is necessarily this the query of armature positions 3-fold is secured or, however, an inter-position is necessary. Here are 10 - 30 V DC Pepperl+Fuchs sensors 1x SB 3,5-E2 for 0 °, 1x SB 3,5-E2 for  90 ° and 1x SB 3,5-E2 for 180 ° built-in.













2.3   Ex i ... 8 V DC limit switch box with 5 sensors

Limit switch box with 4x Ex i ... 8 V DC Pepperl+Fuchs sensor SJ 3.5-N, S1 to S4. All 4 sensors are with adjustable aluminium-switching cams. The cylindrical Ex i ... 8 V DC Pepperl+Fuchs sensor NJ4-12GK-N (=S5) is mounted for the query of the closed case lid.













2.4   Ex i ...  - 45°C  8 V DC limit switch box, 4 sensors

in certain situations it is necessarily this the query of armature positions 2-or 3-fold is secured or, however, an inter-position is necessary. Equipped with 4x Ex i ... 8 V DC Pepperl+Fuchs SJ 3,5-SN.

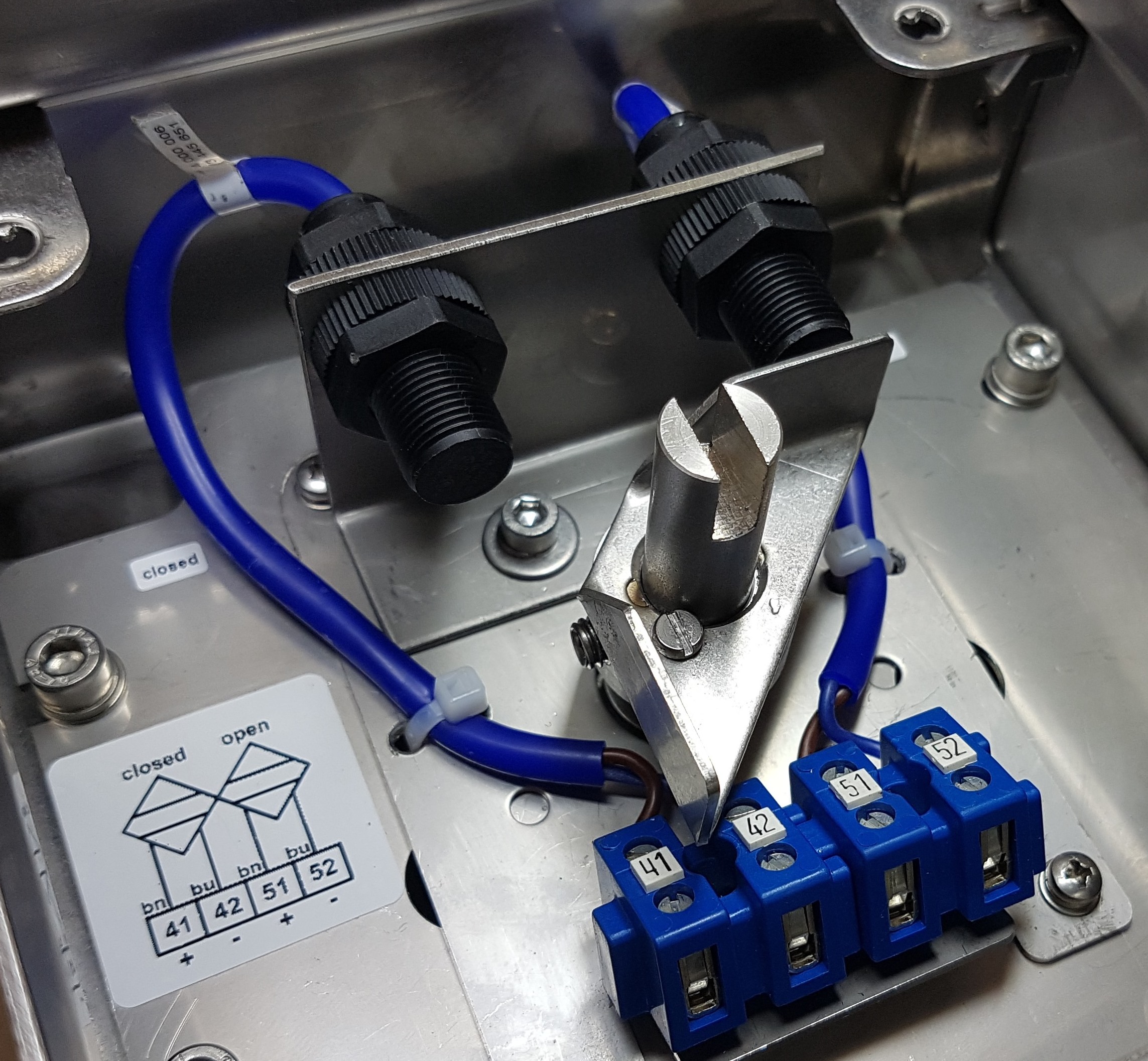

2.5   Ex i ...  8 V DC - 35°C stainless steel limit switch boxes, 3 sensors and 2 sensors

Stainless steel limit switch box with 3x Ex i ... 8 V DC Pepperl-Fuchs NJ4-12GK-SN, 2x open und 1x closed, stainless steel limit switch box mit 2x Ex i ... 8 V DC Pepperl-Fuchs NJ4-12GK-SN, 1x open und 1x closed













2.6   4 - 250 V AC/DC limit switch box, 6 switches

Limit switch box security equipped with 6x mechanical Crouzet limit switches. The switching contacts are silver coated or optionell gold coated. The 6x switching contacts are adjustable.















2.7   4 - 250 V AC/DC 3D limit switch box, 4 switches



Limit switch box security equipped with 4x mechanical Crouzet limit switches. 2x for position OPEN and 2x for position CLOSE. The switching contacts are silver coated or optionell gold coated. The 4x switching contacts are adjustable.













3.   limit switch boxes big sensors/switches



3.1   5 - 60 V DC limit switch box for linear actuators



Limit switch box for linear actuators with inductive Pepperl+Fuchs sensors 2x NCB5-18GM40-Z0 for position open and closed with adjustable stainless steel switching cams.











3.2   24 V DC limit switch box

Limit switch box with inductive Ifm sensors for position open and closed with adjustable stainless steel switching cams.













3.3   Ex i ... 8 V DC inductive limit switch boxes for pneumatic rotary- and linear actuators



Limit switch boxes with inductive Ex i ... 8 V DC Pepperl+Fuchs NJ3-18GK-S1N and NJ5-18GK-SN for positions 0° up to 180° with adjustable aluminium switching cams. Limit switch box with inductive Ex i ... 8 V DC Pepperl+Fuchs NJ3-18GK-S1N-SN for position 0° and 90° with fixed aluminium switching cam and stainless steel membrane vent..

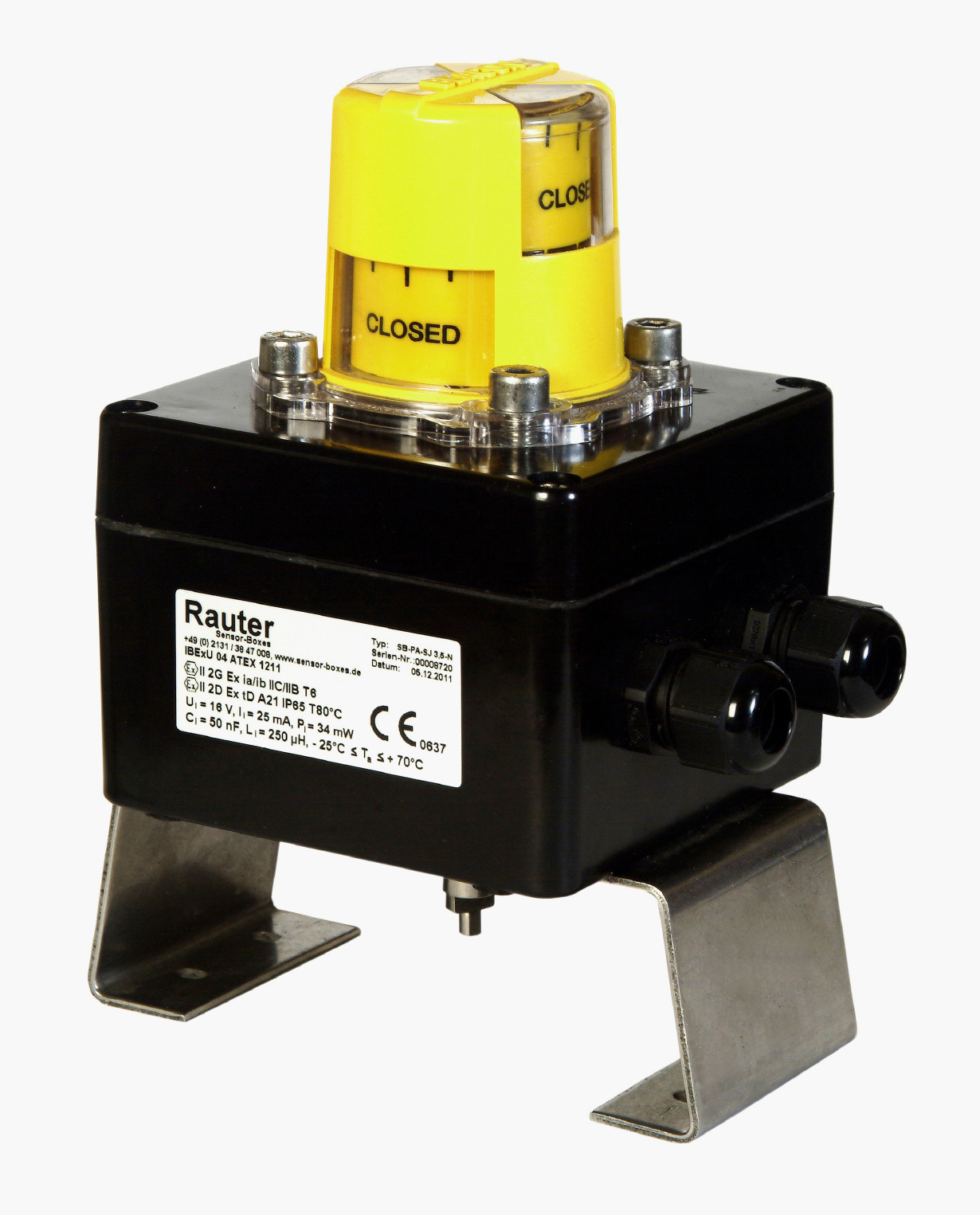

3.4   10 - 60 V DC inductive stainless steel limit switch box with 3D-indicator



Limit switch box with inductive Pepperl+Fuchs sensors NBB4-12GM45-E2-M for positionen 2x CLOSED and 1x OPEN with stainless steel/aluminium switching cams 0° and 90°













3.5   20 - 250 V AC / 20 - 300 V DC inductive limit switch box



Limit switch box with inductive 2x Pepperl+Fuchs sensors NBB4-12GM75-US for position OPEN and CLOSED.

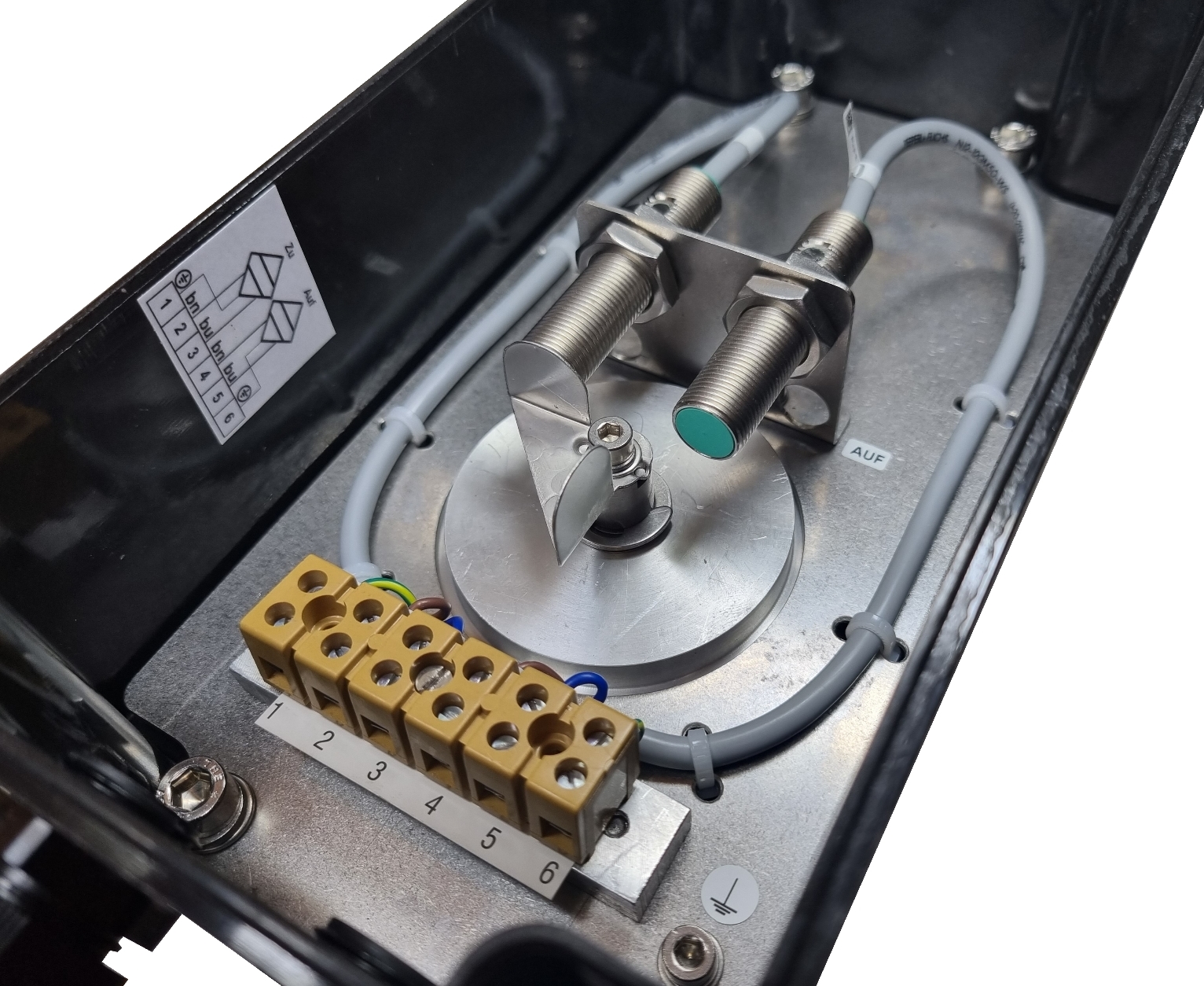

3.5.1   20 - 253 V inductive limit switch box for alternating current



Limit switch box with inductive Pepperl+Fuchs sensors NJ2-12GM50-WS for position OPEN and CLOSED.

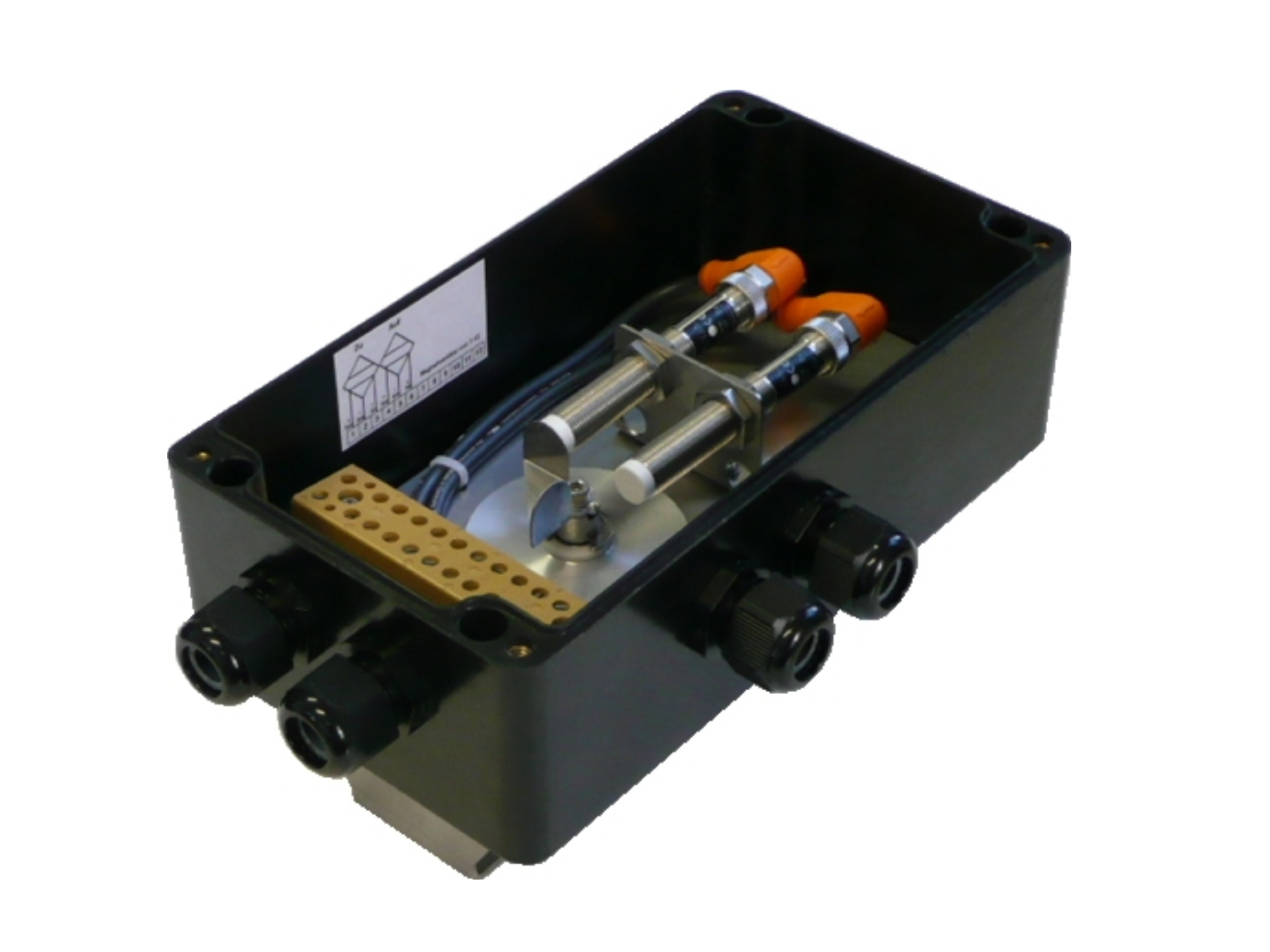

 3.6   10 - 36 V DC inductive limit switch box

valve limit switch for pneumatic rotary actuators

Limit switch box with inductive ifm sensors for position open and closed.













3.7   24 V DC inductive limit switch box

limit switch box with 3x P+F sensors

Limit switch box with inductive P+F sensors for position open, 45° and closed.













3.8   20 - 265 V AC/DC inductive limit switch box

20 - 265V valve limit switch with Siemens Bero sensors

Limit switch box with inductive Siemens Bero sensors for position open and closed.













3.9   10 - 55 V DC inductive limit switch box

valve limit switch with Balluff sensors

Limit switch box with inductive Balluff sensors for position open and closed.













3.10   4 - 20 mA inductive limit switch box

The device orders beside his 4 - 20 mA analogous exit for the analogous representation of the corner positions more than 2 independently switch exits parametrierbare of each other by means of their two important positions (e.g., start and stop position) can be shown.

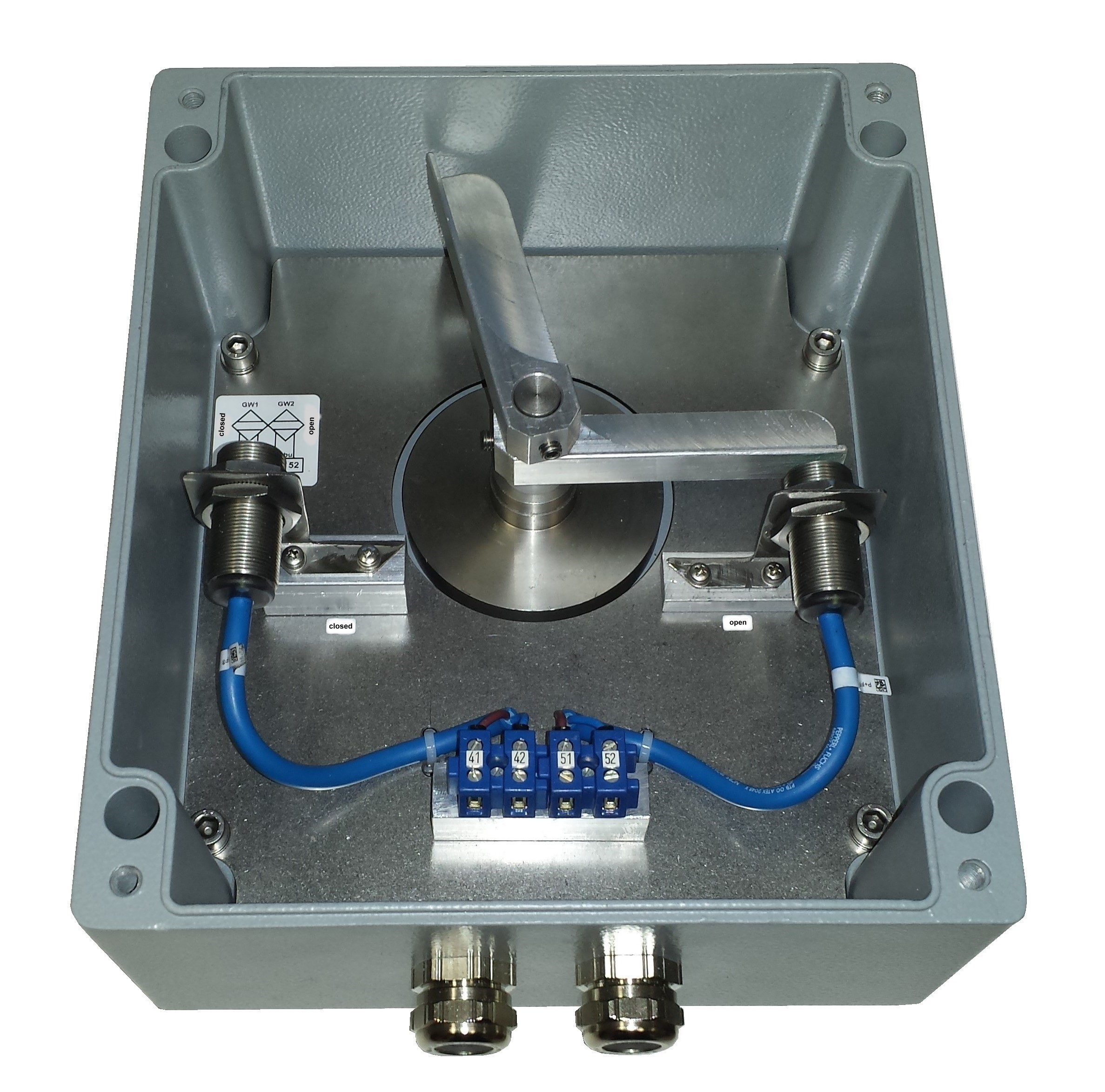

3.11   Ex i ... 8 V DC limit switch box for hydraulic actuators

Limit switch box with 2x Pepperl+Fuchs sensors NCB5-18GM40-N0 for position "open and closed" with 2x adjustable aluminium switching cams. switching radius = 75mm.













3.12   10 - 30 V DC stainless steel limit switch box



10 - 30V stainless steel limit switch box with 2x Pepperl+Fuchs NBB10-30GK50-E2

Stainless steel limit switch box for the application in the iron industry and steel industry, e.g., raw gas flaps, 3 lever flaps, glasses racketeers. A big switch distance of 10 mm is given by the built-in inductive Pepperl+Fuchs sensors NBB10-30GK50-E2. Through this the armature positions can be started with the variably adjustable switch flag perfectly and be reported back.













3.13   4 - 250 V AC/DC mechanical limit switch box

Limit switch box with mechanical Schmersal switches for positionen open and closed with aluminium switching contact.













3.14   4 - 250 V AC/DC mechanical limit switch box

valve position monitor for valve automation

Limit switch boxes with mechanical Schmersal limit switches for position open and closed.













3.15   4 - 250 V AC/DC mechanical limit switch box

Limit switch boxes with mechanical Schmersal limit switches for position open and closed.
